DLUBAL Shape Thin 9.03.01

Free Download DLUBAL Shape Thin 9 for Windows. The stand‑alone program SHAPE‑THIN determines section properties of open and closed thin‑walled cross‑section and performs the stress analysis and plastic design.

You can also FREE download Geomagic Design X

Overview of DLUBAL Shape Thin 9 Benefits

DLUBAL Shape Thin provides the option of interface with RFEM and RSTAB: SHAPE‑THIN cross‑sections are available in the library of the FEA or frame analysis software, and vice versa, it is possible to import and design the internal forces from RFEM and RSTAB in SHAPE‑THIN.

SHAPE-THIN determines the section properties and stresses of any open, closed, built-up, or non-connected cross-sections.

SHAPE-THIN includes an extensive library of rolled and parameterized cross-sections. They can be combined or complemented by new elements. It is possible to model a cross-section consisting of different materials.

Optionally, SHAPE‑THIN checks the limit values (c/t) in compliance with the design methods el‑el, el‑pl or pl‑pl according to DIN 18800. The (c/t) zones of elements connected in the same direction are recognized automatically.

Overview of DLUBAL Shape Thin 9 Features

• Modeling of the cross-section via elements, sections, arcs and point elements
• Expandable library of material properties, yield strengths, and limit stresses
• Section properties of open, closed or non-connected cross-sections
• Effective properties of cross-sections consisting of different materials

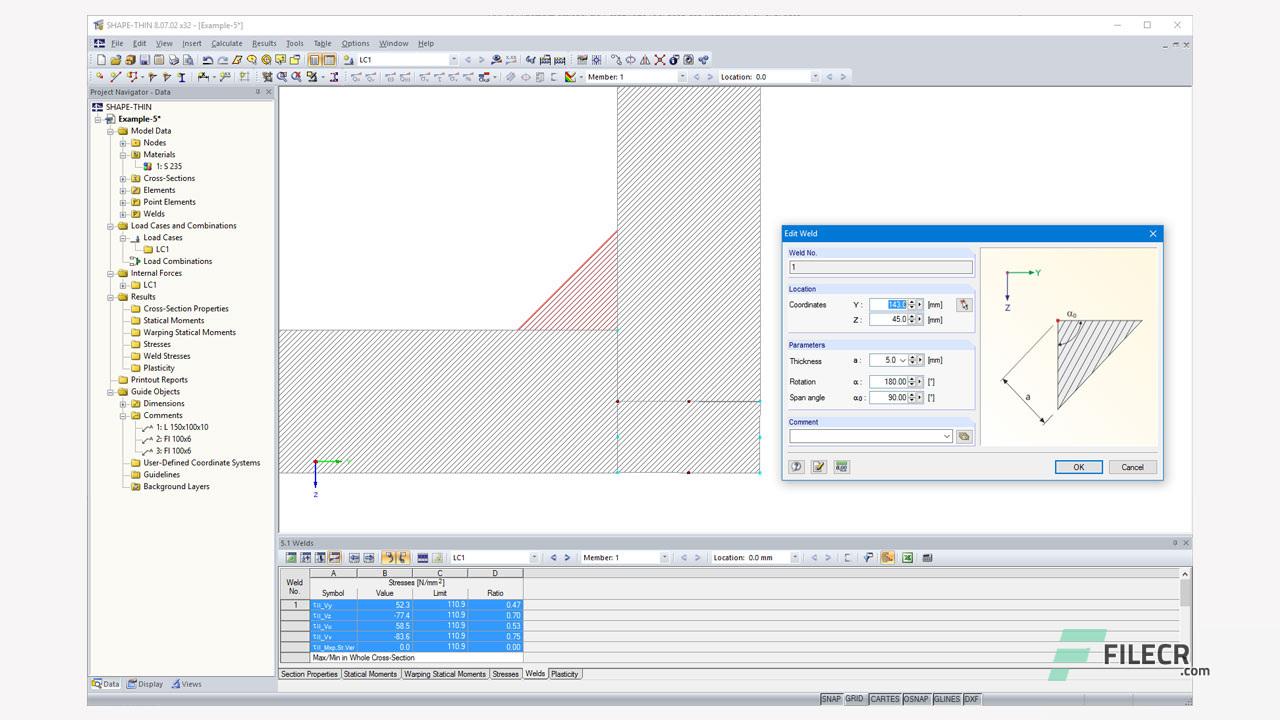

• Determination of weld stresses in fillet welds
• Stress analysis including design of primary and secondary torsion
• Check of (c/t) ratios

Technical Details and System Requirements

• Supported OS: Windows 7/8/10
• RAM: 4 GB RAM
• Free Hard Disk Space: 2 GB or more
