MacSpice 3.3.1

Free Download MacSpice's latest standalone offline installer for macOS. It is a powerful environment for analyzing and designing electronic circuits. It supports various types of circuit analysis, including transient, AC, and DC simulations.

Overview of MacSpice for macOS

Circuit simulation is a way of building and testing virtual models of electronic devices. Simulating a design is usually cheaper and quicker than building a prototype. MacSpice requires a text file description of the circuit as input. This 'netlist' lists components and the nodes they connect to. Users may prepare netlists with a text editor or derive them from a circuit diagram using a third-party schematic-capture application. MacSpice then builds a numerical model of the circuit and analyses this.

A command interpreter (shell) specifies the types of analyses required and how the results should be processed, saved, or displayed. The high quality of the MacSpice command interpreter makes task automation straightforward.

Simulation is a tool, not a magic wand. The quality of the results depends on the accuracy of the netlist and the device models used. Within Spice, most devices are ideal—its resistor, for example, has just one property: resistance. An accurate resistor has parasitic inductance and capacitance; if these significantly influence the circuit, they must be added explicitly to the netlist.

Features of MacSpice for macOS

• Accurate Simulation: With the power of SPICE, you can explore precise circuit simulations, ensuring your designs perform as expected.
• User-Friendly Interface: Navigate through a clean and intuitive interface designed specifically for Mac OS X, making it easy to get started.
• Analysis Tools: Perform detailed AC, DC, and transient analyses to understand circuit behavior under various conditions.
• Customizable Circuit Design: Modify and create flexible circuits, allowing you to tailor designs to specific needs and requirements.

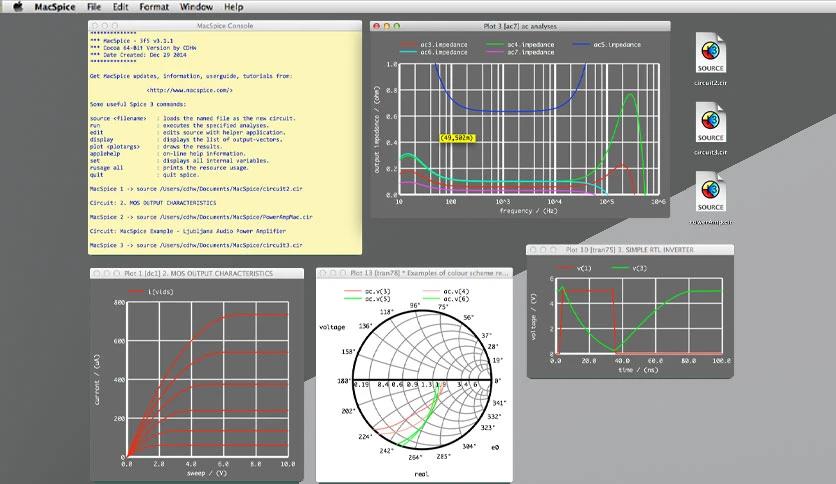

• Graphical Output: Visualize simulation results with clear, detailed graphs that help interpret circuit performance.
• Support for Multiple Formats: You can import and export circuit designs in various formats, facilitating compatibility with other tools and software.
• Extensive Component Library: Access a wide range of electronic components, making it easier to build complex circuits.
• Error Checking: Automatically identify and troubleshoot errors within your circuit designs, reducing the likelihood of issues during physical testing.
• Simulation Speed: Experience fast and efficient simulation times, allowing quick iterations and modifications.

Technical Details and System Requirements

• macOS High Sierra (10.13.6) or later
• Processor: 64-bit Intel or Apple silicon

FAQs

Q: Can I import existing circuit designs into MacSpice?
A: You can import and export circuit designs in various formats.

Q: How accurate are the simulations?
A: The simulations are highly accurate, leveraging the SPICE engine for precise results.

Q: Can I use MacSpice for educational purposes?
A: It's an excellent tool for students and educators to learn and teach electronic circuit design.
